#include "AnitaEventSummary.h"

Include dependency graph for PeakFinder.h:

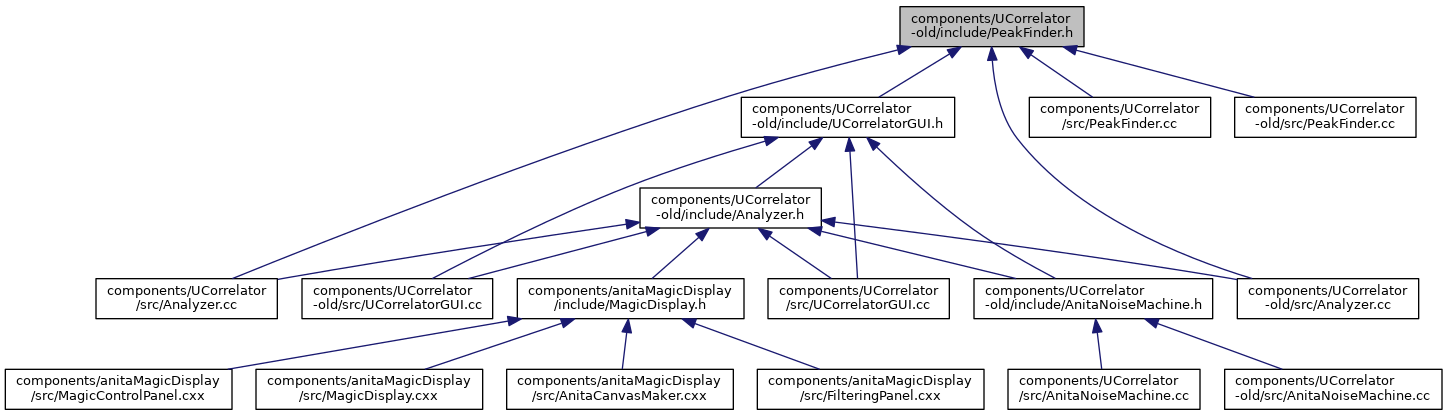

This graph shows which files directly or indirectly include this file:

Classes
class	UCorrelator::peakfinder::RoughMaximum

class	UCorrelator::peakfinder::FineMaximum

Namespaces
	UCorrelator

Functions
int	UCorrelator::peakfinder::findIsolatedMaxima (const TH2D hist, double distance, int Nmaxima, RoughMaximum maxima, double minPhi=0., double maxPhi=0., double minTheta=0., double maxTheta=0., bool exclude=false, bool use_bin_center=true)

void	UCorrelator::peakfinder::doInterpolationPeakFindingAbby (const TH2D hist, FineMaximum peak)

void	UCorrelator::peakfinder::doInterpolationPeakFindingBicubic (const TH2D hist, FineMaximum peak, double min_to_consider=0.75)

void	UCorrelator::peakfinder::doPeakFindingQuadratic9 (const TH2D hist, FineMaximum peak)

void	UCorrelator::peakfinder::doPeakFindingQuadratic16 (const TH2D hist, FineMaximum peak)

void	UCorrelator::peakfinder::doPeakFindingQuadratic25 (const TH2D hist, FineMaximum peak)

void	UCorrelator::peakfinder::doPeakFindingQuadratic36 (const TH2D hist, FineMaximum peak)

void	UCorrelator::peakfinder::doPeakFindingQuadratic49 (const TH2D hist, FineMaximum peak)

void	UCorrelator::peakfinder::doPeakFindingGaussian (const TH2D hist, FineMaximum peak)

void	UCorrelator::peakfinder::doPeakFindingHistogram (const TH2D hist, FineMaximum peak)

Detailed Description

This file contains various (2d) peak finding routines

Definition in file PeakFinder.h.

Function Documentation

◆ doInterpolationPeakFindingAbby()

void UCorrelator::peakfinder::doInterpolationPeakFindingAbby	(	const TH2D *	hist,
		FineMaximum *	peak
	)

Legacy interpolation peak finding as Abby did it... basically does interpolation independently in row and column

Definition at line 401 of file PeakFinder.cc.

◆ doInterpolationPeakFindingBicubic()

void UCorrelator::peakfinder::doInterpolationPeakFindingBicubic	(	const TH2D *	hist,
		FineMaximum *	peak,
		double	min_to_consider = `0.75`
	)

NOT IMPLEMENTED YET. Eventually, this will find the maximum of the bicubic interpolant in the maximum bin

Definition at line 813 of file PeakFinder.cc.

◆ doPeakFindingGaussian()

void UCorrelator::peakfinder::doPeakFindingGaussian	(	const TH2D *	hist,
		FineMaximum *	peak
	)

2D gaussian fit to histogram.... this will be pretty slow

Definition at line 632 of file PeakFinder.cc.

◆ doPeakFindingHistogram()

void UCorrelator::peakfinder::doPeakFindingHistogram	(	const TH2D *	hist,
		FineMaximum *	peak
	)

Fool-proof but stupid method of using histogram

Definition at line 875 of file PeakFinder.cc.

◆ doPeakFindingQuadratic9()

void UCorrelator::peakfinder::doPeakFindingQuadratic9	(	const TH2D *	hist,
		FineMaximum *	peak
	)

These all do a quadratic fit in the neighbhorhood of the maximum bin. The number denotes the size of the square. This should be very fast; the matrix decomposition necessary to perform the minimization is statically computed.

Definition at line 374 of file PeakFinder.cc.

◆ findIsolatedMaxima()

int UCorrelator::peakfinder::findIsolatedMaxima	(	const TH2D *	hist,
		double	distance,
		int	Nmaxima,
		RoughMaximum *	maxima,
		double	minPhi = `0.`,
		double	maxPhi = `0.`,
		double	minTheta = `0.`,
		double	maxTheta = `0.`,
		bool	exclude = `false`,
		bool	use_bin_center = `true`
	)

Finds largest Nmaxima isolated local maxima in a histogram. A maximum is local if it's bigger than any neighboring bins Returns the number found (which might be less than Nmaxima if there are insufficient isolated local maxima)

Definition at line 112 of file PeakFinder.cc.
